Standard Acoustic Transducers



Different materials, shapes, sizes

Single Crystal, PZT 4, PZT 8, etc.

Tonpilz

LCAT

VLF Bender

Flextensional

Trioid

Power Wheel

CMX

Spherical

Custom Designs

Custom Transducer Capabilities

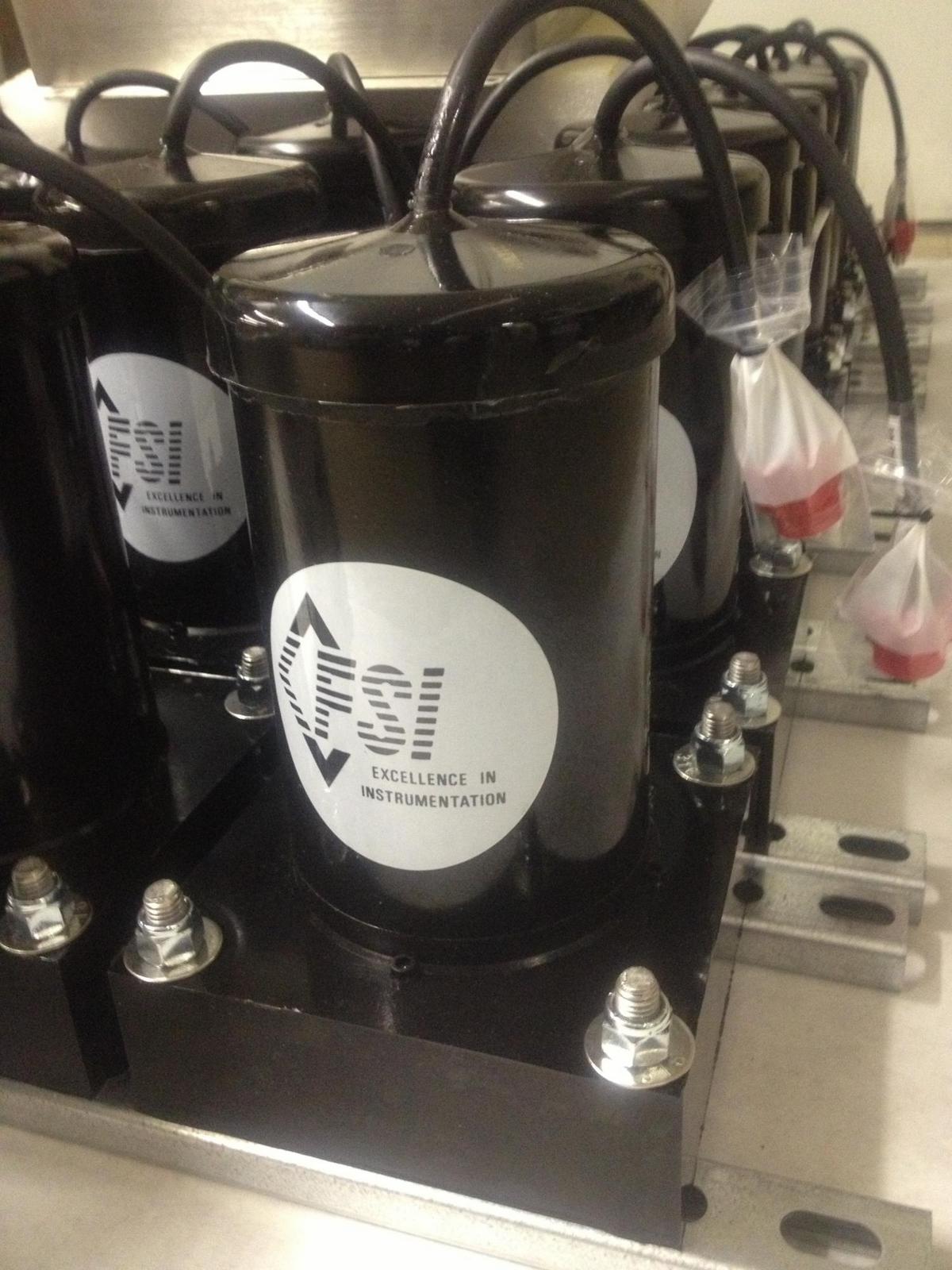

HMS-ATTR-15K HF
10 KHz to 20 KHz Band
1 kw, 15% duty cycle at 15 kHz for214 dB re 1 ╬╝Pa @ 1 m
4 kw maximum at reduced duty cycle

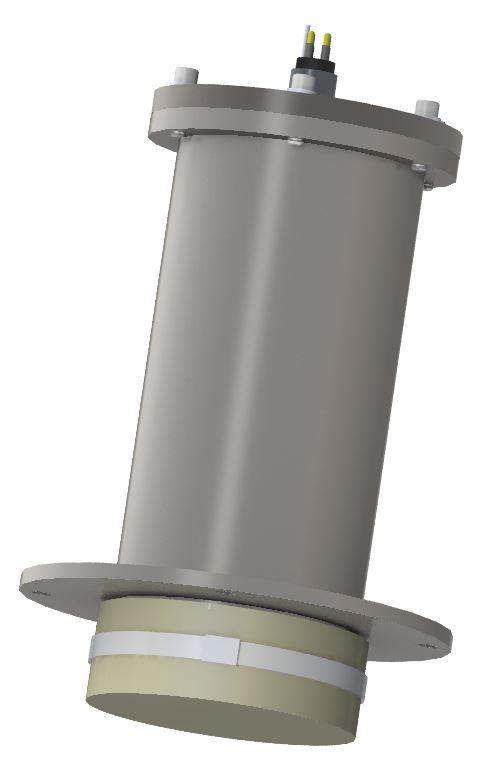

HMS-ATTR-4.5K LF
2 KHz to 7 KHz Band
600 Watts 30% duty cycle,  200 Watts CW
Transmitting Response per Volt 152 dB re 1uPa/1V@1m
Receiving Response per Volt -165 dB re 1uPa/1V@1m

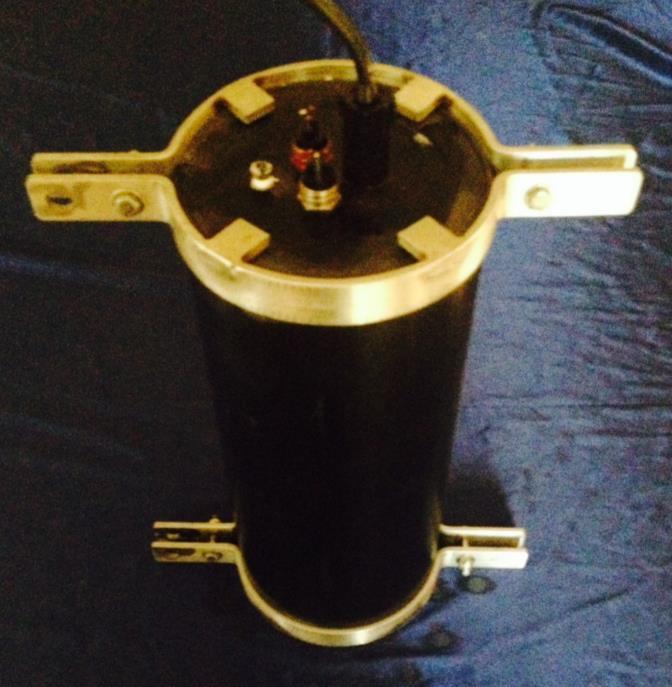

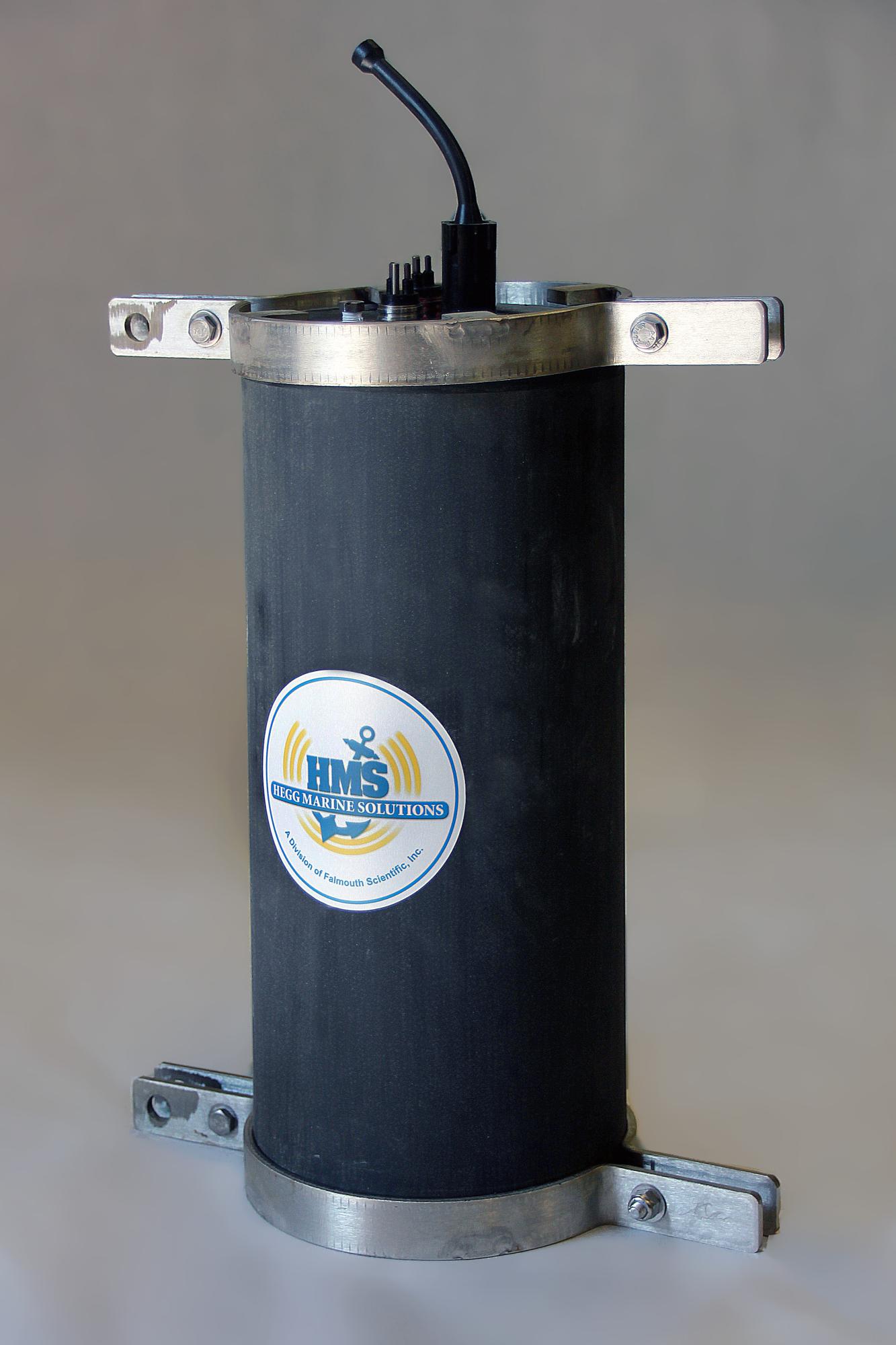

HMS-AT-650 ULF
200 Hz to 2 KHz Band
Operates to 3000m Depth
Up to 3000W power levels at a 30% duty cycle
FSI-VLF
10 Hz to 1000 Hz Band
Operates to 6000m Depth

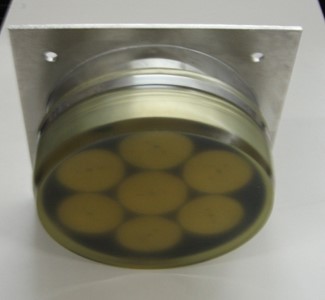

Specialized Pipeline Tracking Arrays

Combined HF+LF or HF Only
